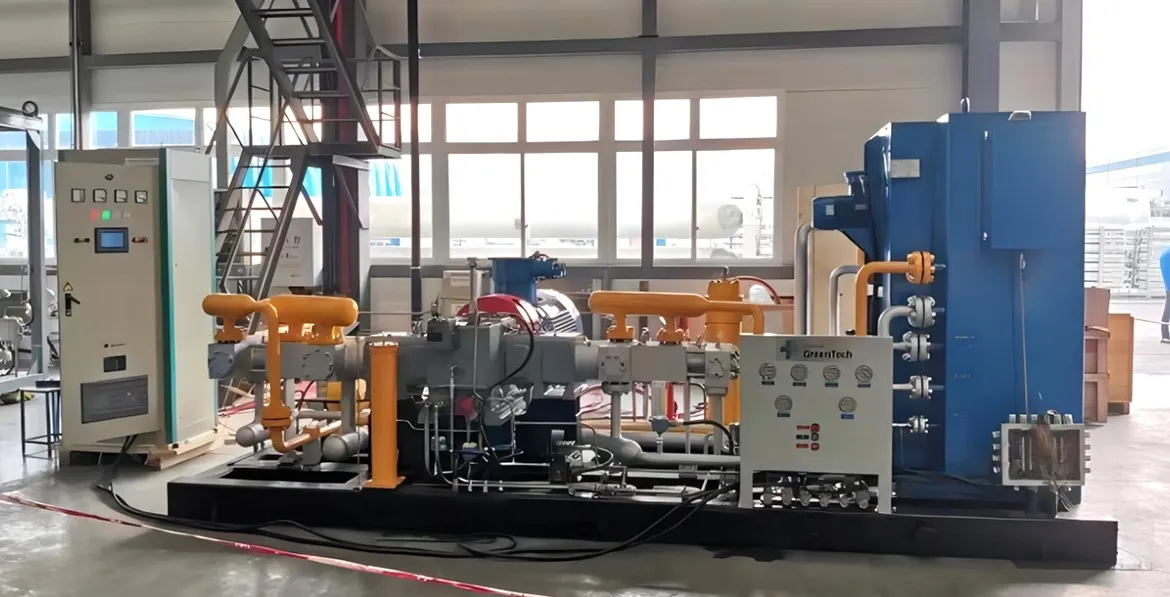

M-type CNG balanced opposed reciprocating compressor txais plaub kab ntawm symmetrical tshuav qauv, plaub kab ntawm crank 90 degree ib leeg, reciprocating inertia quab yuam tag nrho balanced, ruaj khov kev ua haujlwm ntawm chav tsev, me me vibration. Lub tshuab muaj cov qauv compact thiab kho yooj yim. Tshwj xeeb tshaj yog tsim nyog rau kev koom ua ke ntawm lub peev xwm loj compressors nyob rau hauv loj CNG niam chaw nres tsheb, uas yuav tsum tau tsib theem ntawm compression.
Nta:
Qhov sib npaug sib npaug ntawm cov khoom siv compressor sawv cev ua pov thawj rau kev ua tau zoo thiab kev ntseeg siab hauv thaj tsam ntawm compression technology. Nws cov qauv yooj yim tsis tau muaj zog teeb tsa theem rau cov cuab yeej siv uas tsis yog muaj zog xwb tab sis kuj tseem ceeb heev kom tswj tau yooj yim. Qhov kev yooj yim no, ua ke nrog kev ntseeg siab, ua rau muaj kev nyab xeeb tshwj xeeb uas ua rau nws nyiam xaiv hauv ntau daim ntawv thov kev lag luam.
Ib qho ntawm cov yam ntxwv tseem ceeb ntawm cov compressor no yog nws lub peev xwm ua kom tau qhov siab compression piv thaum ua kom lub zog noj tsawg kawg nkaus. Qhov no tsis yog tsuas yog ua rau nws ib qho kev xaiv ib puag ncig, tab sis kuj txhais mus rau hauv kev txuag nyiaj ntau rau cov neeg siv. Qhov sib npaug sib npaug tsim kom ntseeg tau tias lub zog hauv lub compressor raug faib sib npaug, txo qhov hnav thiab tsim kua muag thiab txhim kho nws txoj haujlwm ua haujlwm.
Versatility yog ib qho cim ntawm qhov sib npaug ntawm qhov sib npaug ntawm qhov sib npaug ntawm cov compressor, qhia txog kev hloov pauv dav dav thoob plaws ntau qhov kev lag luam. Los ntawm cov nroj tsuag petrochemical mus rau cov chaw tsim khoom, nws daim ntawv thov dav dav ua rau nws mus rau kev daws rau compression xav tau. Tsis tas li ntawd, tus nqi qis ntawm kev tau txais thiab kev saib xyuas nws yog ib qho kev daws teeb meem zoo uas tsis muaj kev cuam tshuam rau kev ua haujlwm.
Cov Cheebtsam
|
Lub Npe Lub Npe |
Kev piav qhia |
Lus hais |
|
Cav thaiv |
Lub hauv paus qauv ntawm lub compressor, nrog rau lub tog raj kheej thaiv thiab crankcase. Nws txhawb nqa lub tog raj kheej liner, crankshaft, txuas pas nrig mechanism, thiab lwm yam khoom, kom ntseeg tau lawv cov kev sib raug zoo. |
Muab cov qauv kev ncaj ncees thiab meej qhov chaw rau txhua qhov loj. |
|
Crankshaft |
Nyob rau hauv lub compressor, lub crankshaft xa lub hwj chim los ntawm converting lub cev muaj zog rotational tsab ntawv tsa suab rau hauv lub piston's linear reciprocating tsab ntawv tsa suab. Nws tiv taus ntau yam kev ua haujlwm nyuaj, xav tau lub zog siab, siab rigidity, thiab zoo heev hnav tsis kam. |
Qhov tseem ceeb rau kev xa xov hluav taws xob thiab kev txav mus los, xav tau cov khoom siv ruaj khov thiab muaj zog. |
|
Txuas Qws |
Txuas lub crankshaft mus rau lub piston, ua kom muaj kev hloov pauv ntawm kev txav thiab xa hluav taws xob. Cov pas nrig txuas yog tsim los tsim kom muaj kev hloov pauv hauv tensile thiab compressive zog thaum ua haujlwm. |
Qhov tseem ceeb rau kev hloov dua siab tshiab thiab kev xa hluav taws xob, muaj peev xwm tuav tau ntau yam kev ntxhov siab. |
|
Piston Assembly |
Nws muaj cov piston taub hau, piston rings, piston tus pin, thiab piston pas nrig. Cov duab thiab qhov loj ntawm lub piston yuav tsum sib phim lub tog raj kheej. Cov piston rings muab kev sib khi los tiv thaiv cov pa roj siab los ntawm qhov sib txawv ntawm lub piston thiab lub tog raj kheej. |
Nws yog ib qho tseem ceeb rau kev tswj lub compression thiab efficiency ntawm lub cav, kom ntseeg tau tias kev ua tau zoo thiab cov pa roj tsawg. |
|
Hla taub hau |
Ib qho tseem ceeb hauv kev sib kis kab mob uas txuas cov pas nrig piston mus rau qhov txuas txuas. |
Nws yog ib qho tseem ceeb kom ntseeg tau tias kev sib hloov ntawm cov piston pas nrig thiab cov pas nrig txuas. |
|
Ntim |
Lub luag haujlwm rau kev sib khi ntawm lub tog raj kheej thiab lub piston pas nrig, kom ntseeg tau tias cov roj tsis xau thaum lub sij hawm compression txheej txheem. |
Qhov tseem ceeb rau kev tswj xyuas kev ncaj ncees thiab kev ua haujlwm ntawm cov txheej txheem compression los ntawm kev tiv thaiv cov pa tawm. |
Specification
|
1 |
Qauv No. |
MH 3-32 |
|
2 |
Compressible nruab nrab |
Natural Gas |
|
3 |
Hom |
Sib npaug tawm tsam reciprocating compressor |
|
4 |
Compression theem |
4 |
|
5 |
Inlet siab (gauge siab) (MPa) |
0.2-9 |
|
6 |
Gas qhov kub thiab txias (degree) |
Tsawg dua los yog sib npaug li 30 |
|
7 |
Qhov hluav taws xob siab (gauge siab) (MPa) |
25 |
|
8 |
Qhov hluav taws xob roj kub (tom qab txias) (degree) |
Tsawg dua los yog sib npaug li 15 degree saum toj ambient kub |
|
9 |
Cov pa roj (Nm3 / h) |
1000-10000Nm3/h |
|
10 |
Lub cev muaj zog (kw) |
163 KW TSI |
|
11 |
Lub cev muaj zog (kw) |
250-1600KWR |
|
12 |
Cav ceev (rpm) |
1485 |
|
13 |
Lub cev muaj zog (V) |
AC380V ± 7% |
|
14 |
Tsav hom |
Direct motor kev twb kev txuas, soft starter |
|
15 |
Hom cua txias |
Cua txias |
|
16 |
Lub tog raj kheej lubricant |
Cov qauv tsis muaj roj, tsis muaj roj lubrication |
|
17 |
Kev siv roj (g / h) |
60 |
|
18 |
Roj twj tso kua mis siab (MPa) |
0.4-0.8 |
|
19 |
Explosion-proof qib lub ntsiab lub cev muaj zog |
ExdⅡBT4, IP54, Class F rwb thaiv tsev |
|
20 |
Suab nrov (Sound Pressure Level) |
Suab nrov<75db(A) at 3m from Skid |
|
21 |
Tswj hom |
PLC + soft starter |
